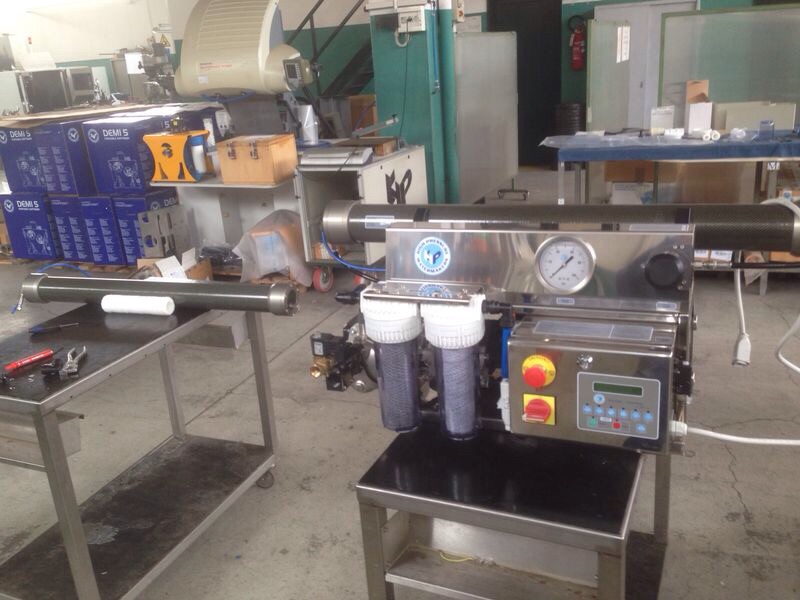

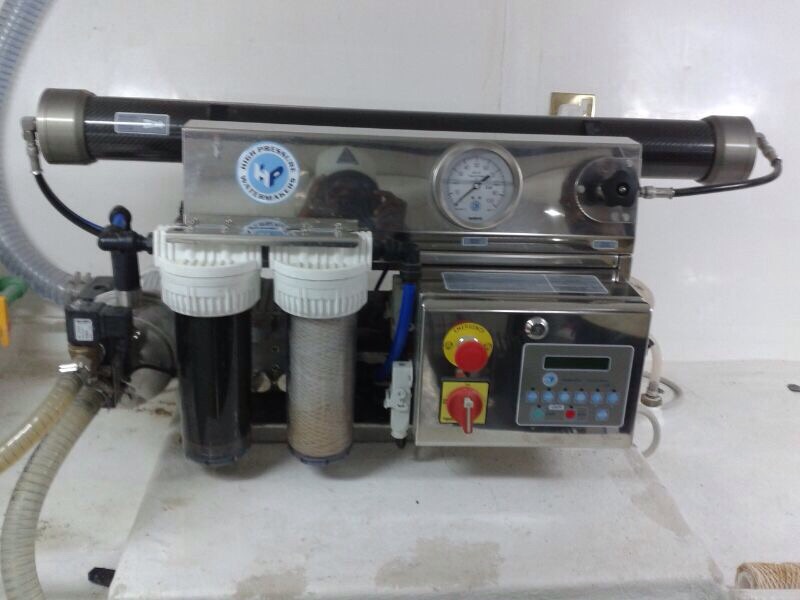

HP SC330-3 AUTO
Production 330 Lt/h
Available voltages 110V 60Hz - 230V 50Hz – 230V 60Hz – 380V 50Hz – 440V 60Hz
This unit is composed as follows:
1 X Automatic flushing valve (HP VAL)
1 X AISI 316 L stainless automatic operated pressure regulation valve (RP Tronic)
Automatic membranes and circuit flushing
1 X AISI 316 LOWARA 2HMS4A booster pump
1 X Super Duplex Danfoss Nessie pump
3 X Composite 315-40 pressure vessels
3 X DOW CHEMICAL or HYDRANAUTICS membranes 315-40
1 X AISI 316 Removable electric switchboard case
1 X PLC controlled Electrical Switchboard – with settable parameters and DIAGNOSTIC SYSTEM*
1 X Alarmed PRESSURE Control System (min 20 – max 60 bar), to protect pumps and membranes
1 X Alarmed SALINITY Control System (400uS), for the not conforming water automatic drain and timed stop
1 X Analogical Gauge Meter
1 X Digital Gauge Meter (pressure sensor)
1 X Digital Flow meter
1 X Cartridge Inlet Double Pre filtration (Charcoal + 5 micron)
